STREAM-Lite 4-0-4-0

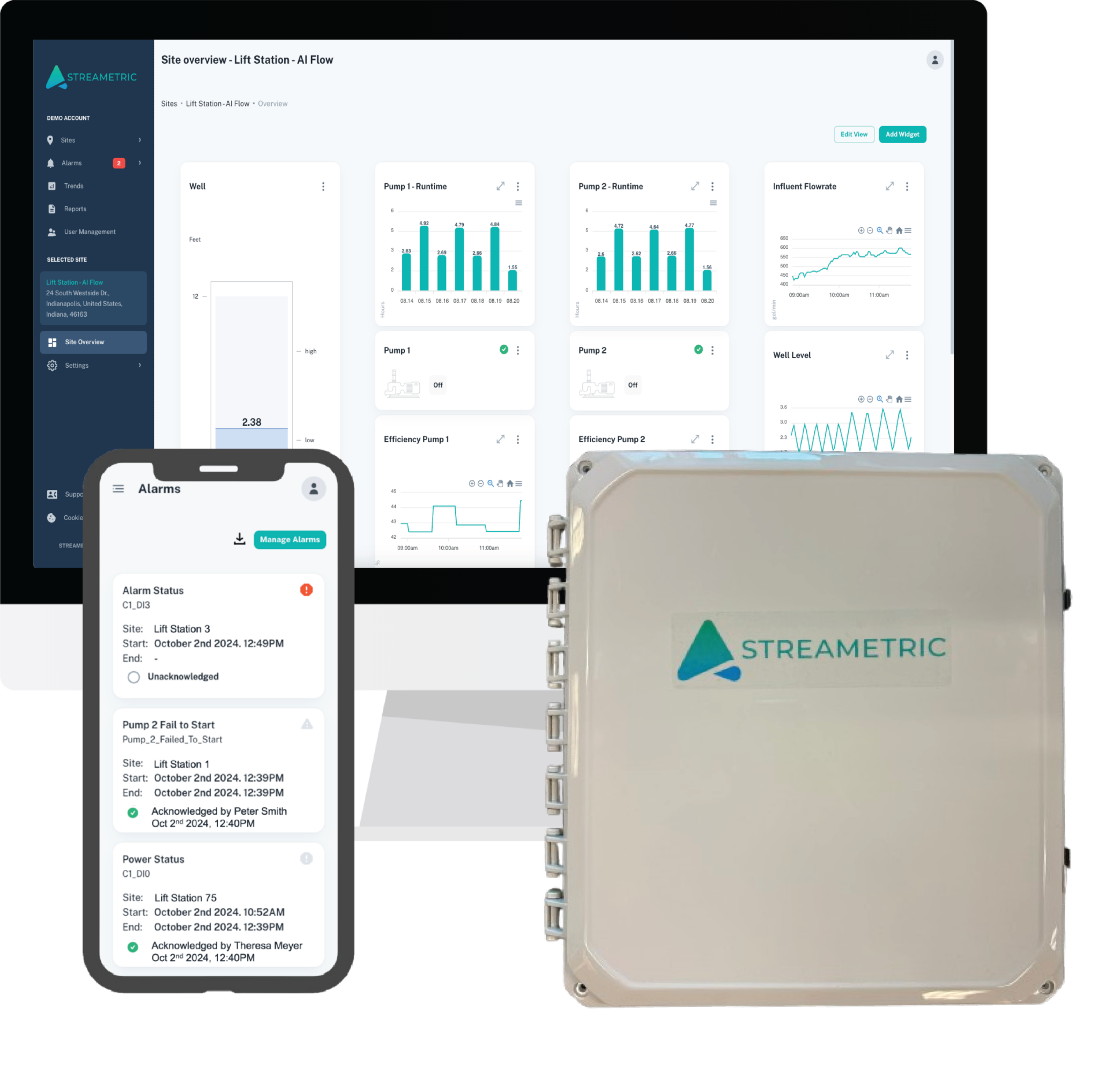

The STREAM-Lite is ideal for to monitor most important alarms. With it’s 4 Digital Inputs it can report for example power or equipment failures and floats for high/low-level alarms. Through the 4 Digital Outputs it can additionally provide simple control capabilities. The RTU integrates seamlessly with the STREAMETRIC SCADA app, helping you to protect your assets.
Key Aspects
• Power Fail Monitoring (Backup Battery)
• 4 Digital Inputs
• 4 Digital Outputs
• Cellular – LTE CAT 1 (multi-carrier)
• Serial & Ethernet
• Real-time Data Collection & Alarms
Typical Applications
• Lift Stations
• Valves
• Wastewater Treatment Plants
Additional Information
I/O Configuration
Digital Inputs
4 (5-30VDC)
Analog Inputs
0
Digital Outputs
4 (5-30VDC)
Analog Outputs
0
Power Fail Input
1 Dedicated Power Fail Input
Data Featured
Edge Computing
Local data storage and buffering, equipment runtime cycle counting, Flow totalization (pulse or analog), Local time syncing, Flow Predictions
Protocols
Communication
MODBUS TCP/RTU, OPC UA/DA, MQTT, EtherNet/IP
Hardware
Power Information
>15h Battery Backup capabilities, Power Input: 120-240V AC, Operating voltage: 12V DC
