STREAM-A 20-12-10-6

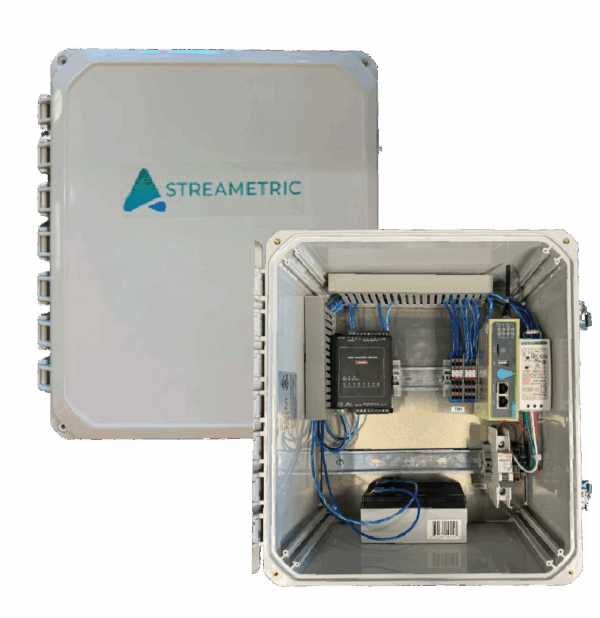

The STREAM-A 20-12-10-6 provides monitoring and control for a wide range of sites, for example lift stations, pump stations, and components of treatment plants. It is equipped with a PLC incl. default control programs for reliable local 24/7 automation. Through the STREAMETRIC app permitted users can securely control and change setpoints remotely.
Key Aspects
• 20 Digital Inputs
• 12 Analog Inputs
• 10 Digital Outputs
• 6 Analog Outputs
• Integrated PLC
• Serial & Ethernet
• Cellular – LTE CAT 1 (Multi-Carrier)
• Real-time data collection & alarms
Additional Information
Enclosure: Polycarbonate Nema 4X
Battery Backup: >13h
Power Input: 120-240V AC
Operating voltage: 24V DC
Edge Features
• Local data storage and buffering
• Equipment runtime cycle counting
• Flow totalization (pulse or analog)
• Local time syncing
• Flow Predictions (Click to Learn More)
Protocols:
• MODBUS TCP/RTU
• OPC UA/DA
• MQTT
Dimensions: In enclosure (H x W x D) 23 x 15 x 7.1 in ; 584 x 381 x 180 mm;
On backplate: (H x W x D) 13 x 11 x 4.69 in; 330 x 279 x 119 mm
Weight: 28 LBS
Downloads
STREAM-A 20-12-10-6 Datasheet: STREAM-A 20-12-10-6
